ACE-3963   Speed, rpm, temp, warning lamps

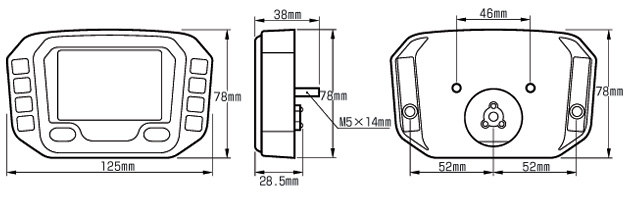

	Features Digital multifunction LCD ATV / Motorcycle computer displays analogue and digital tachometer, speedometer, voltmeter, temperature gauge, fuel gauge and clock. LCD has 2 digital rows and analogue switchable 8000 / 16000 RPM bar-graphic display with grey LED backlight Odometer and total riding timer cannot be reset and are permanently stored in memory End user is able to modify the odometer value whilst it displays less than 30km. This allows the purchaser to pre-set the reading to match the speedometer they are replacing Displays clock when in standby mode Can be easily switched between MPH and KMH Adjustable wheel circumference from 1 to 3999mm Fully waterproof Includes bracket, speed sensor and wiring harness Vibration (8G) and mechanical shock (10G) tested EMI / EMS tested, E-Mark certificate Dimensions: 128mm x 78mm x 28.5mm Black plastic or black billet case Silver / Grey / Black display surround or chromed billet case Non waterproof plugs Standard speed processor can work with reed switch / cable drive adaptors Fuel gauge can work with 100/250/510 ohm senders (full tank is low resistance) or can be switched off if not required ACE-3963 Motorcycle / ATV with general warning lamps Functions Symbol Specification Bar Graphic Tachometer 250 - 8,000 RPM / 500 - 16,000 PRM Digital Tachometer and warning RPM 10-19900RPM, 100RPM increment Speedometer KM/H / MPH 2.4-399km/h 248.5mph Trip meter 1 & 2 TRIP 1/2 0.0 - 999.9 km/miles Odometer ODO 0-999999 km / 0-624999 miles 12 / 24 hour clock 0:00 - 11:59 / 23:59 Average Speed AVG 2.4 - 399KM/H (248MPH) Riding Timer RT 0-9999H59 Maximum Speed MAX 2.4 - 399KM/H (248MPH) Total Riding Time TT 0-999999H Bar-Fuel Meter +/- 100/250/510 ohms and off Voltmeter V 8v - 18v COMPATIBLE WITH GEARBOX SPEED SENSORS

Category Acewell Speedometers Sub-Category ACE-3xxx Quantity in Stock 20
