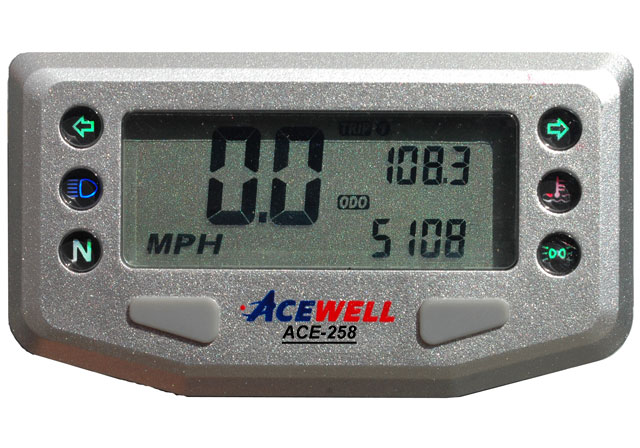

Small, tough and waterproof multifunction computer.
Multifunctions packed into a neat package
Perfect for road registered motocross, enduro and supermoto bikes, quads, and streetfigher conversions.
Modes: MPH, KM/H, ODO, TRIP, HRT, HRTT, RT, TT, CLOCK, MAX SPEED
Features
features
Digial Speed Readout (SPD)
Maximum Speed Display (MAX SPD)
Average Speed Display (AVG)
Odometer (ODO)
Trip Meter
Clock
Resettable Riding Timer (RT)
Non-resettable Riding Timer (TT)
Warning Lamps
Warning Symbols Backlit
Bar Chart Fuel Gauge
Backlight
Waterproof Computer
Waterproof Multipin Plugs
Plastic Case
Enter Odometer Reading When New
EMI/EMS Tested CE And E-Marked
Vibration (8G) And Mechanical Shock (100G) Tested.
Warning Lamps
warning lamps
Positive switching Negative Switching LCD symbols
Specifications

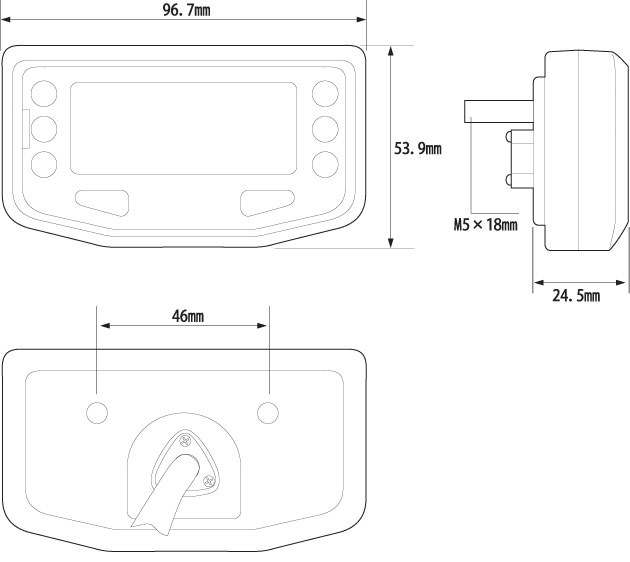

specifications Features Specification Model Number ACE-258 Digial Speed Readout (SPD) 0 - 248MPH / 400Km/h Maximum Speed Display (MAX SPD) 0 - 248MPH / 400Km/h Average Speed Display (AVG) 0 - 248MPH / 400Km/h Max Speed Sensor Input Frequency 100Hz (reed sensor / hall sensor / cable drive speedo only) Odometer (ODO) 0-999,999 km / 0-624,999 miles Trip Meter 2 trips, 0-999 km / 0-625 miles Clock 12 / 24 hour clock, also displayed when ignition is off Resettable Riding Timer (RT) 0 - 99h 59min 59sec Non-resettable Riding Timer (TT) 0 - 9999h 59min Warning Lamps 6 Operating Power 12v (DC, Negative earth) Bar Chart Fuel Gauge Input Resistance off or +/- 100 / 250 / 510 ohm Backlight White backlight Connector Plugs 090 series Plastic Case Dimensions 96 x 53 x 24mm Case black / silver plastic Power On ignition key Enter Odometer Reading When New version 1 no, version 2 yes Compatible Wheel Size 1-3999mm

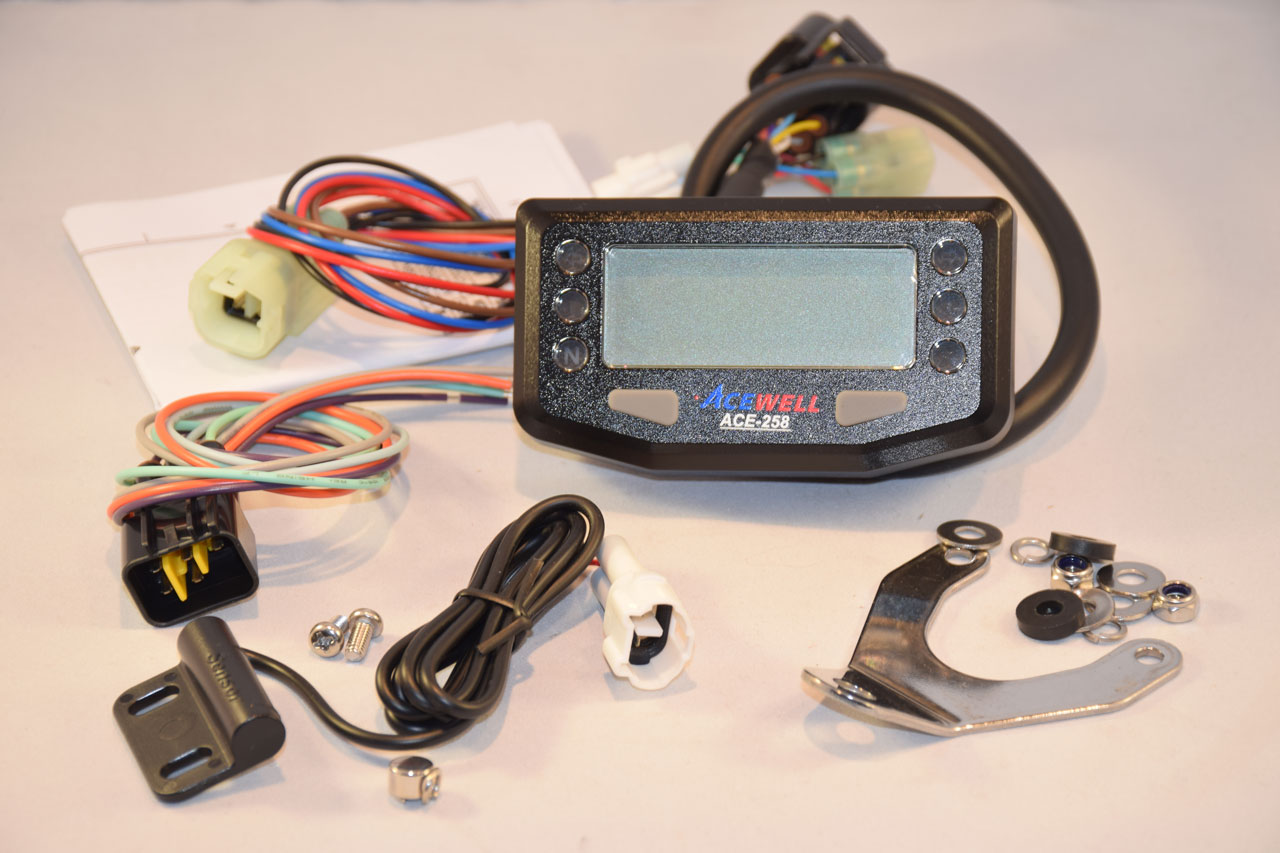

Included in the kit
included in the kit Head unit
Mounting Bracket: ACE-Y Stainless steel bracket
Mounting Kit: stainless steel nuts, washers, anti vibration washers
Speed Sensor: Reed sensor or hall sensor options
Mating multipin plugs and cables to solder / crimp into bike wiring (pigtails)
Operating Instructions
Wiring diagram
