ACE-1600 : Digital display - Speed, RPM, temp, fuel, remote control, lap timer
£ 127.66 £ 115.98 inc VAT€ 158.30 € 143.82 inc VAT$ 162.76 $ 147.87
Product Images (Click to enlarge)
Simple Digital speedometer and rev-counter (also includes temperature and fuel)
Perfect for enduro bikes, motocross bike, trials bikes and track bikes
Lap timer function using handlebar mounted remote control
Warning lamps for gear shift and high temperature
Features
features
Digial Speed Readout (SPD)
Maximum Speed Display (MAX SPD)
Average Speed Display (AVG)
Odometer (ODO)
Trip Meter
Clock
Resettable Riding Timer (RT)
Non-resettable Riding Timer (TT)
Maintenance Reminder
Temperature Gauge
Temperature Sensors
High Temperature Warning Lamp
Remote Control Option
Lap And Race Timers
Lap Timer Connections
Warning Lamps
Digital Rev Counter
Programmable Shift Light
Bar Chart Rev Counter
Voltmeter
Bar Chart Fuel Gauge
Backlight
Waterproof Computer
Plastic Case
EMI/EMS Tested CE And E-Marked
Vibration (8G) And Mechanical Shock (100G) Tested.
Warning Lamps
warning lamps
Processor controlled LCD symbols
Specifications
specifications Features Specification Model Number ACE-1600 Digial Speed Readout (SPD) 0 - 186MPH / 300Km/h Maximum Speed Display (MAX SPD) 0 - 186MPH / 300Km/h Average Speed Display (AVG) 0 - 186MPH / 300Km/h Max Speed Sensor Input Frequency 100Hz (reed sensor / hall sensor / cable drive speedo only) Odometer (ODO) 0-999,999 km / 0-624,999 miles Trip Meter 2 trips, 0-999 km / 0-625 miles Clock 12 / 24 hour clock, also displayed when ignition is off Resettable Riding Timer (RT) 0 - 99h 59min 59sec Non-resettable Riding Timer (TT) 0 - 9999h 59min Maintenance Reminder distance or hours Temperature Gauge maximum 160c / 320f Temperature Sensors 1 Remote Control Option remote control included Lap And Race Timers 99 Lap Lap Timer Connections infrared and magnetic sensors available Warning Lamps 2 Digital Rev Counter 0-20,000 RPM Bar Chart Rev Counter 0-10,000 / 0-20,000 RPM Operating Power 12v or internal battery Voltmeter 8v-18v Bar Chart Fuel Gauge Input Resistance off or +/- 100 / 250 / 510 ohm Backlight Amber backlight Connector Plugs 110 series Plastic Case Dimensions 110 x 55 x 21mm Case black / silver plastic Power On Speed detected (on internal battery) / ignition key Compatible Wheel Size 1-3999mm
Included in the kit
included in the kit Head unit
Temperature Sensor: optional

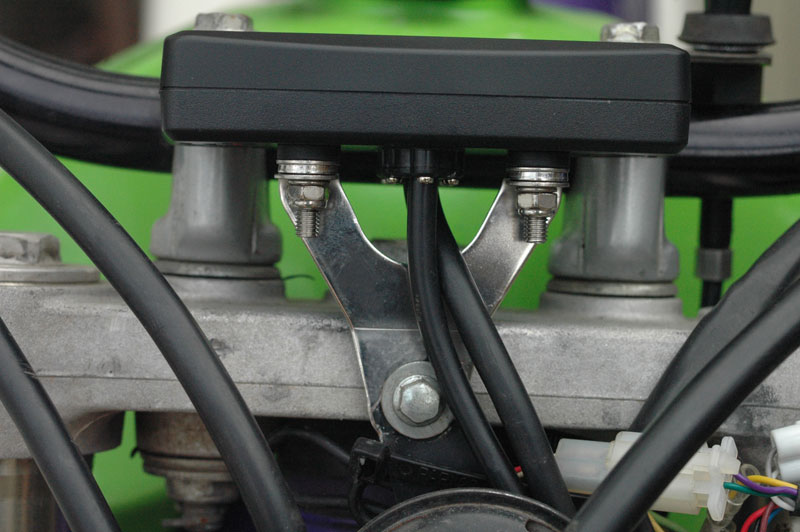

Mounting Bracket: ACE-Y Stainless steel bracket
Mounting Kit: stainless steel nuts, washers, anti vibration washers
Remote Control: Remote control to access lap timer functions
Speed Sensor: Reed sensor or hall sensor options
Mating multipin plugs and cables to solder / crimp into bike wiring (pigtails)
Operating Instructions
Wiring diagram
Product Images
