ACE-3986W-ACUMEN : Acumen speedometer replacement for CCM

£ 180.00 inc VAT | € 223.20 inc VAT | $ 229.50
ACE-3986W-ACUMEN Acumen speedometer replacement for CCM
Product Images (Click to enlarge)

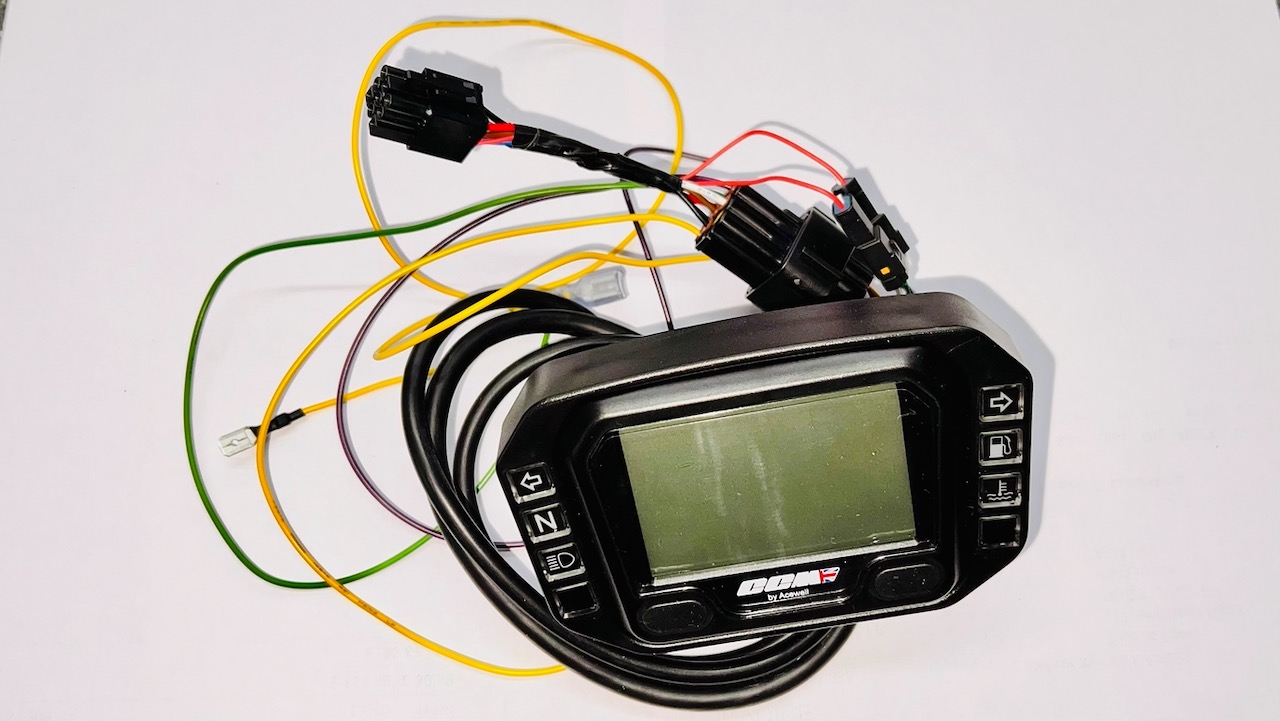

ACE-3986W-ACUMEN Acumen speedometer replacement for CCM picture 1 ACE-3986W-ACUMEN Acumen speedometer replacement for CCM picture 2

This speedometer can be fitted to a CCM 404 DS / 644 DS / FT35 / R30 to replace an original failed Acumen speedometer.

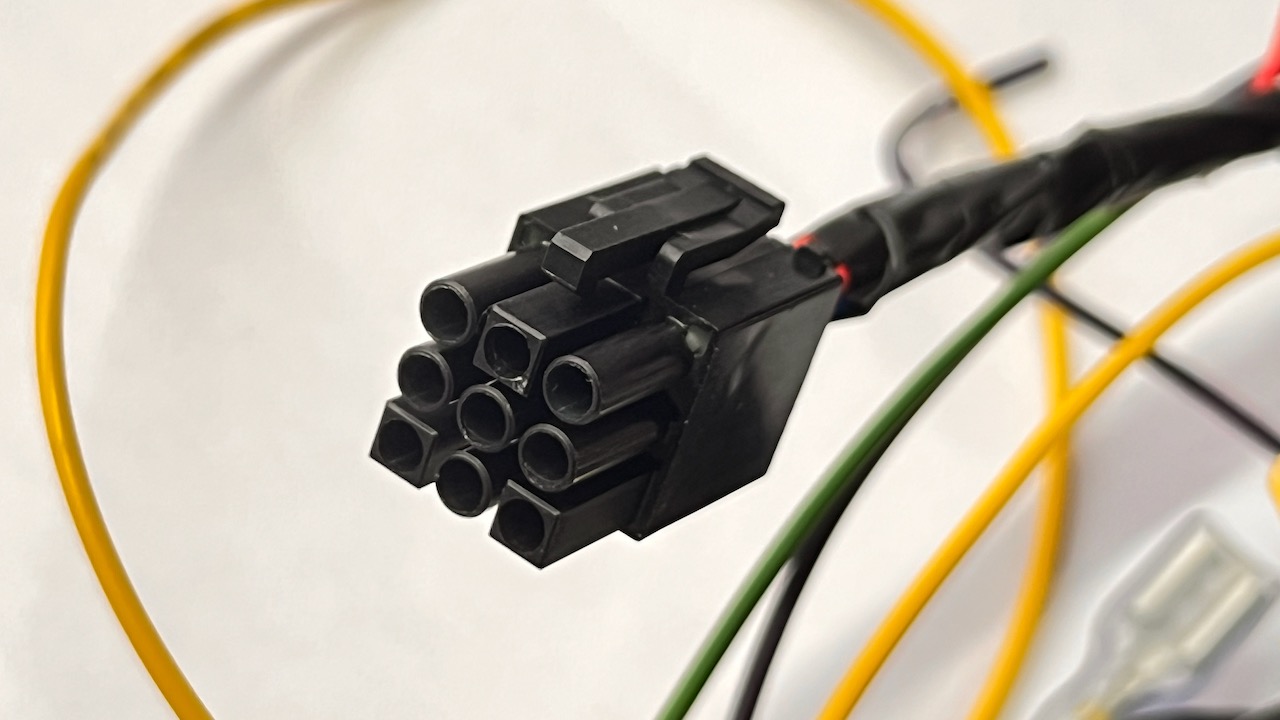

Connect 9 pin plug to original speedo connector
Connect green wire to right indicators
Connect grey wire to left indicators
Connect yellow wire to black wire on the coil

Speedometer wiring diagram ACE-3986W-ACUMEN Acumen speedometer replacement for CCM

Wiring diagram for CCM 404 DS ACE-3986W-ACUMEN Acumen speedometer replacement for CCM

Wiring diagram for CCM 644 DS ACE-3986W-ACUMEN Acumen speedometer replacement for CCM

Product Images
(Click to enlarge)
CategoryAcewell Speedometers
Sub-CategoryBike Specific
Quantity in StockUnlimited

Buy This Product
Base Price
£ 180.00 inc VAT

Quantity
