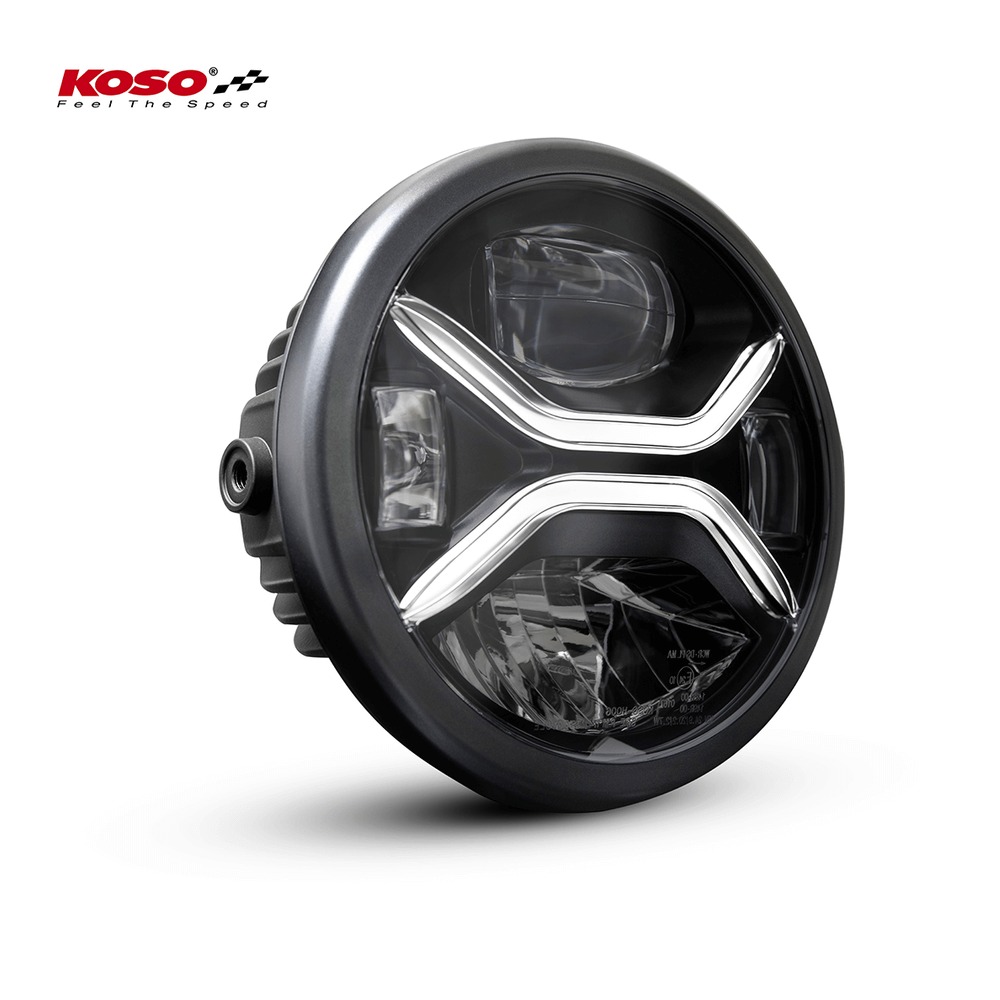

XENITH : KOSO LED main headlights

The KOSO Xenith is a universal LED headlight with a parking light, in black. Its die-cast housing is light but tough, it is DOT and SAE certified, and its powerful LEDs give a strong look and let you ride safely day and night.

Dimensions

Housing diameter: 181 mm
Depth: 96 mm
Fastening: lateral

Connections

3-pin combination plug
yellow = low beam (+)
blue = high beam (+)
black = ground (-)

Extra cable

white = position light (+)
black = ground (-)

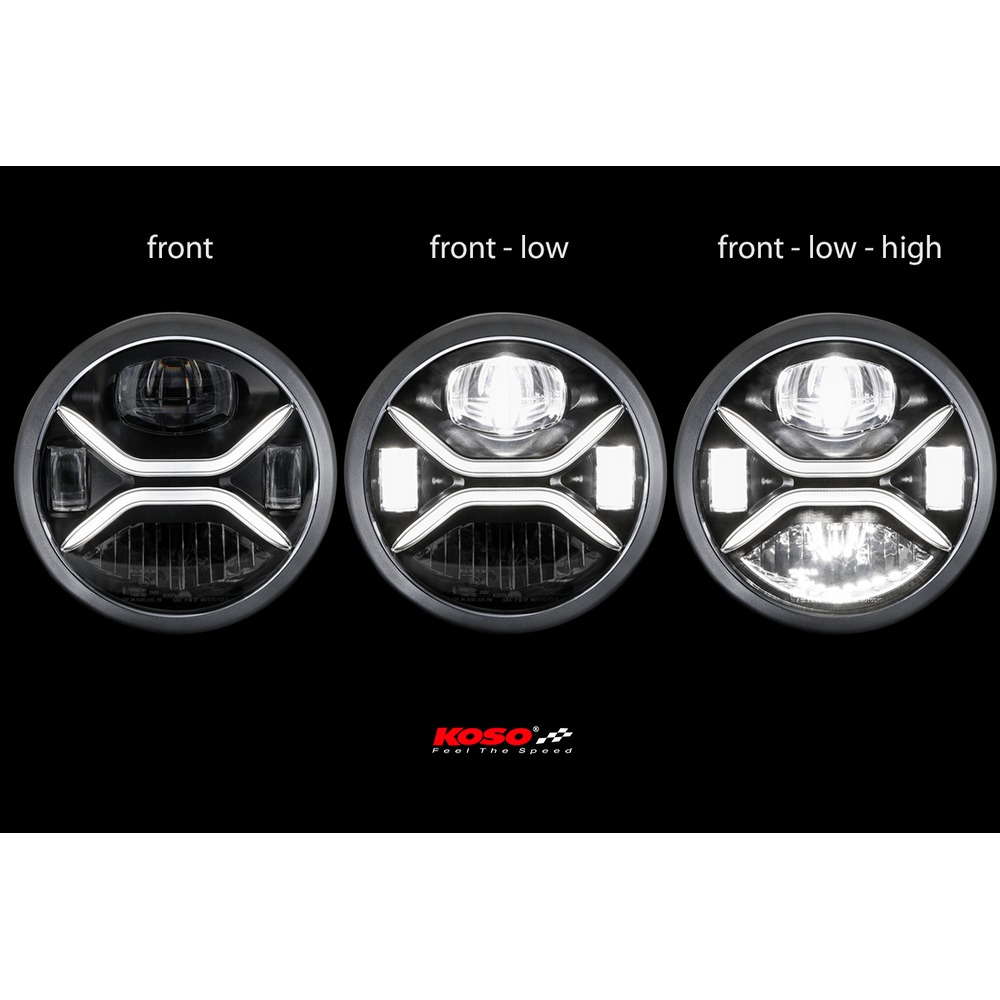

Daytime running light

Light source: 4x LED, 12V, 2.7W
Color of the emitted light: White
Color of the outer lens: Clear
Color of the inner lens: White

High beam

Light source: 1 x LED module (10 of 10 LEDs), 12V, 20.2W
Color of emitted light: White
Color of outer lens: Clear
Color of inner lens: Clear
Brightness: 1889 lumens

Dipped beam

Light source: 1 x LED module (8 of 10 LEDs), 12V, 24.9W
Color of emitted light: White
Color of outer lens: Clear
Color of inner lens: Clear
Brightness: 1557.7 lumens
Scope of delivery: 1 piece
