DUAL STREAM : Highsider LED Main and Dip Beam 45mm Projector Headlight

The Highsider Dual-Stream is a compact LED projector headlight with dip beam, main beam and a parking light ring in one 45mm unit. A mechanical shutter switches between low and high beam.

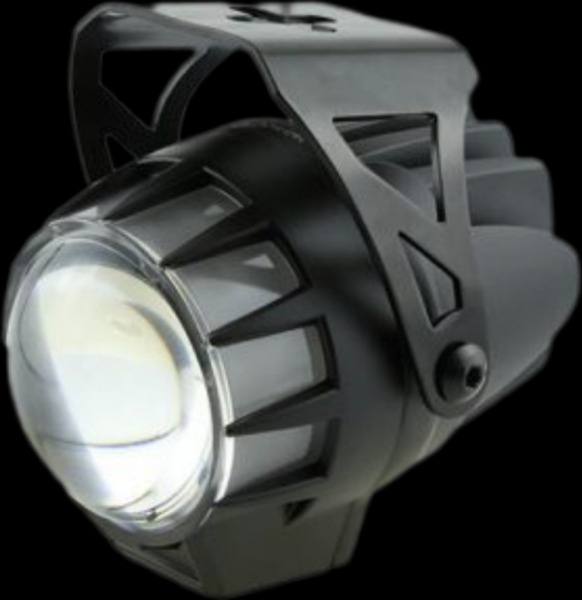

It comes in a black aluminium housing with a U-shaped mounting bracket and is E-approved. As the dip beam is symmetrical it can be used on right or left hand drive roads anywhere in the world. Ideal for mounting in a number board for flat track and similar builds.

Dimensions

Diameter of lens: approx. 45 mm
Height: 70.2 mm
Width: 67 mm
Depth: 96.5 mm
Distance between mounting holes: 67 mm
Mounting holes on the side: M5 mm
Material housing: aluminum
Weight: 0.230 kg

Power consumption

12V / 12W, 739.3 lm, passing beam
12V / 19W, 739.3 lm, driving beam

Cable assignment

Low beam = white (+)
High beam = blue (+)

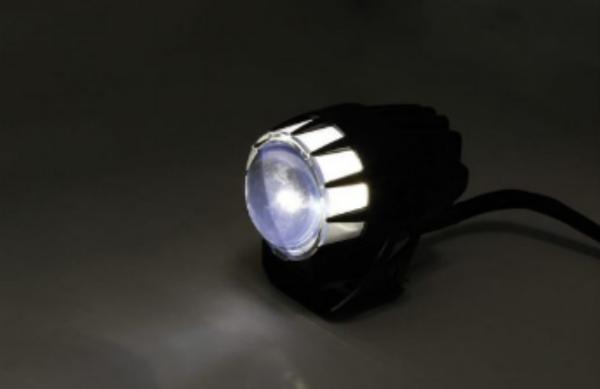

Position light = brown (+)
Earth (Ground) = black (-)
Delivery contents: 1 piece
