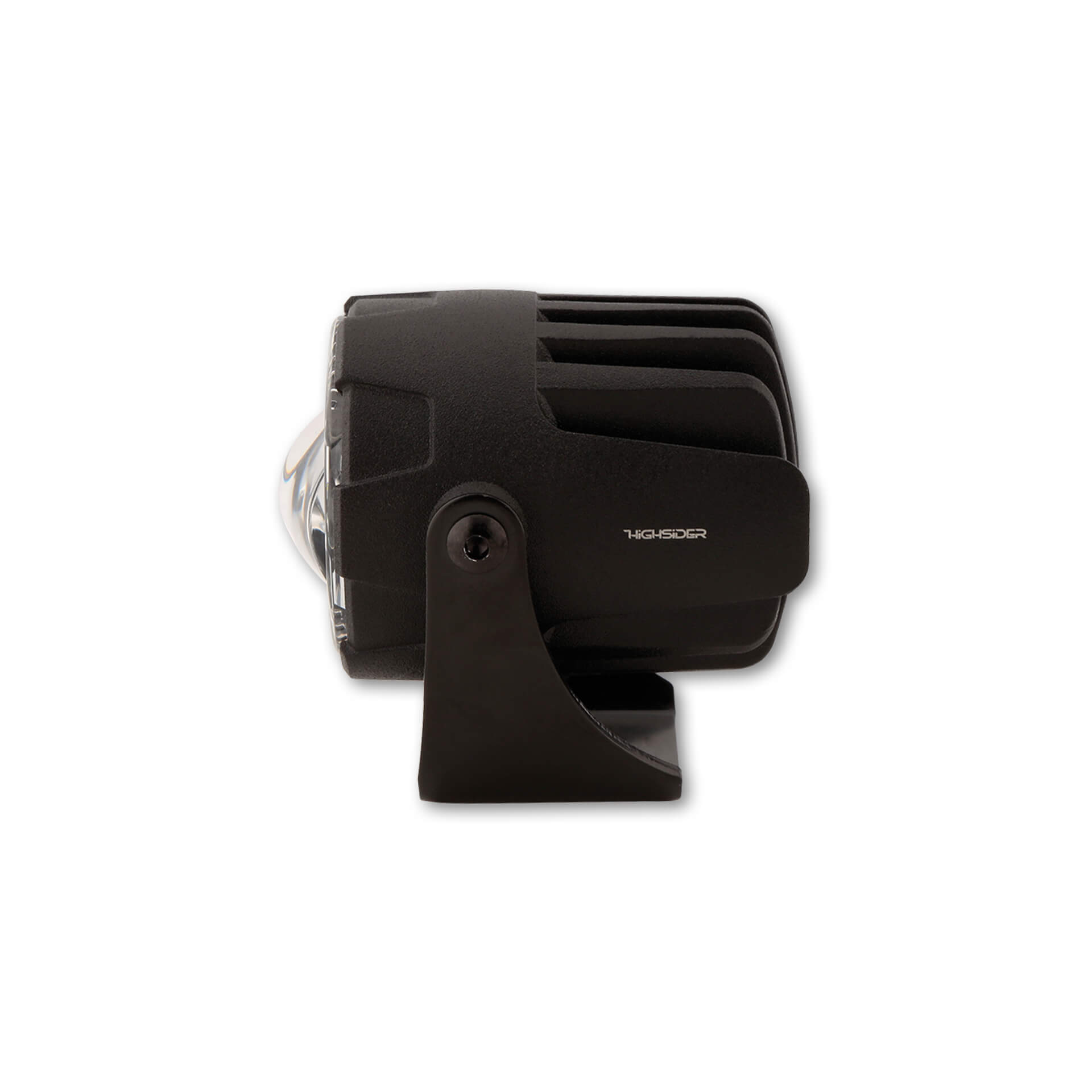

FT13-FOG : HIGHSIDER LED Front Fog Light

The HIGHSIDER FT13- FOG is a high performance fog light in a matte black aluminum housing with a round lens.
The LED technology and the insert used create a bright light for optimal perception.
E- tested: ECE R19, F3

Dimensions:
Diameter: 55 mm
Diameter lens: 44 mm
Distance between mounting holes: 56 mm
Side mounting holes: 63.8 mm
Housing depth: 70 mm
Depth from mounting point: 62 mm
Cable length: 950 mm

Material housing: aluminum
Material bracket: steel

Nuts:
red = low beam (+)
black = ground (-)

Scope of supply:
1 piece
1x screw
1x washer
1x nut

Notes:
- EMC ready.
