FT13-LOW : HIGHSIDER LED Low Dip Beam Headlight

Highsider FT13-LOW LED dipped beam headlight, E-approved.

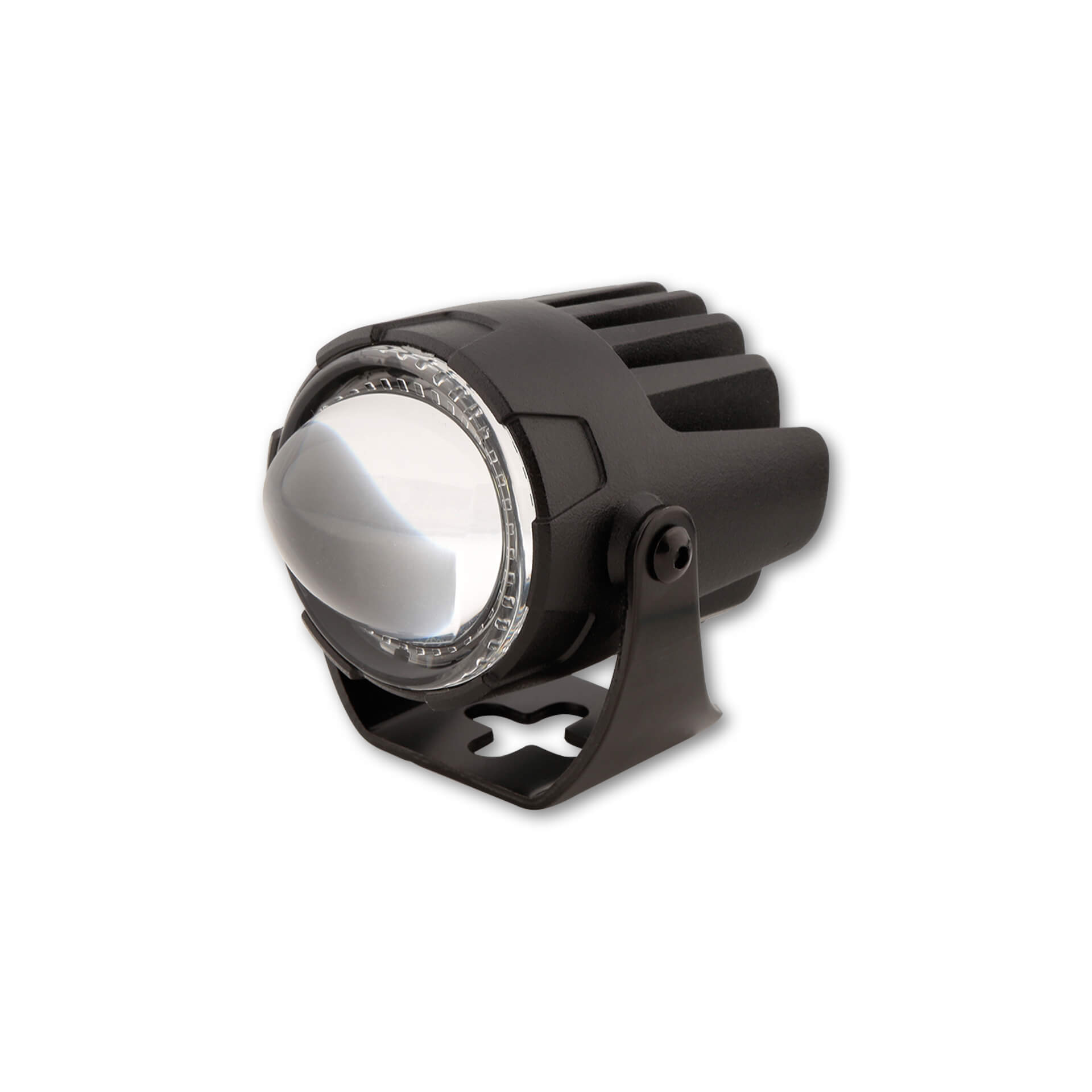

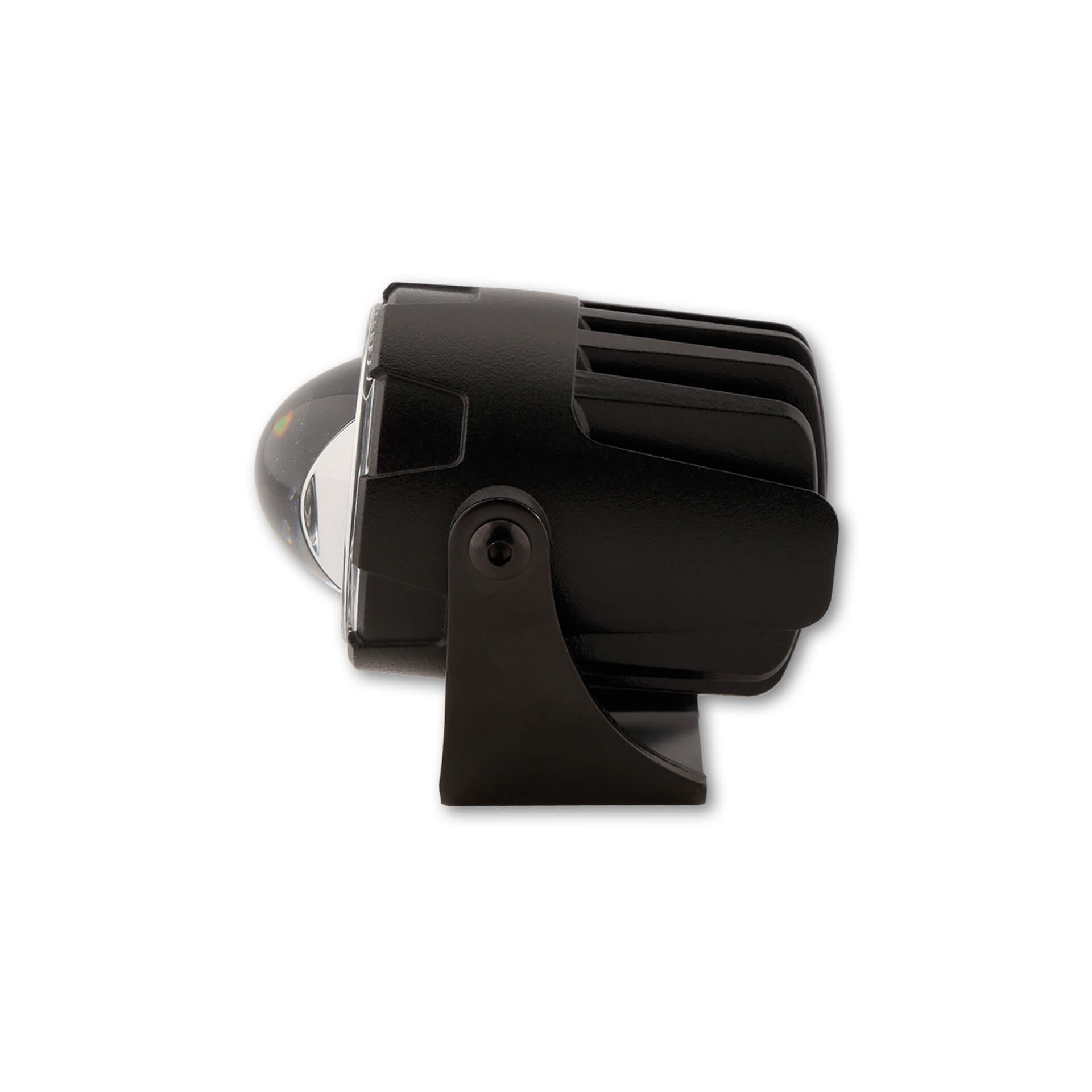

A small but well made LED low beam with a round lens, a matt black high-grade aluminium housing and a strong steel bracket, giving a bright, symmetrical beam. Pair it with the FT13-HIGH spotlight (sold separately) for a complete low and high beam set-up.

dimensions

diameter: 55 mm
diameter lens: 44 mm
distance of the fixing holes: 54 mm
fixing holes on the side: M4
depth of the housing /from fixing point: 70 mm / 40 mm

dimensions of the e-box

width: 53.3 mm
depth: 33.5 mm
height: 15 mm
weight: 0.23 kg
material housing: aluminium
material holder: steel

connections

white = low beam (+)
green = mass (-)
scope of delivery: 1 piece, including mounting material and E-box for voltage control

NOTES

- EMC ready
- WITHOUT parking light!!
- The headlight must never be connected without the supplied black electronic box (voltage control).
